ABOUT US

Driven by Technology

At PSP Technologies we develop a "pocket-size" shock wave generator. The main usage is planned for plasma shock peening,

a discipline of advanced material engineering, specifically surface engineering.Plasma shock peening enhances surface residual stress and increases the lifetime of metal parts

The treated surface is made more compact and denser. PSP Technologies operates as a technological spin-off entity

originating from the Institute of Thermomechanics at the Academy of Sciences of the Czech Republic.


Get in touch

PLASMA SHOCK PEENING (PSP)

Controlled Energy Shockwave Generator

Shock peening is an advanced method for enhancing the fatigue life and operational reliability of metal components. PSP utilize different physical principle for creating shockwave, compared to laser shock peening (LSP). We achieve the same values for the treated surface as with LSP.
We develop the shockwaves generator device. PSP utilizes a precisely controlled plasma burst to propel a impactor to high speeds (around 4 km/s). This high-velocity impact generates a targeted shockwave on the material surface. The shockwaves cause plastic deformations in metal material surface layer leading to impartment of beneficial compressive residual stresses.

Potential of PSP Technology

PSP excels where inducing compressive residual stresses strengthens the metal against surface-initiated failures, namely: material fatigue, crack expansion, corrosion-induced cracks, abrasion, cavitation.
PSP can be implemented in various manufacturing processes to increase production quality at relatively low additional cost.

Controls

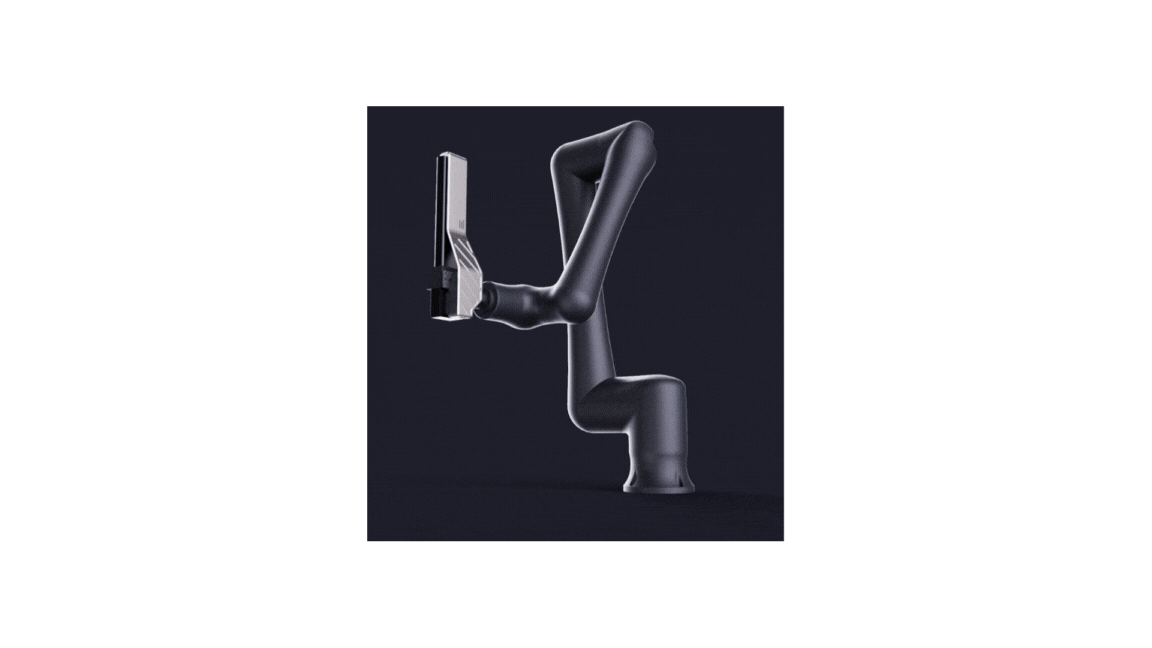

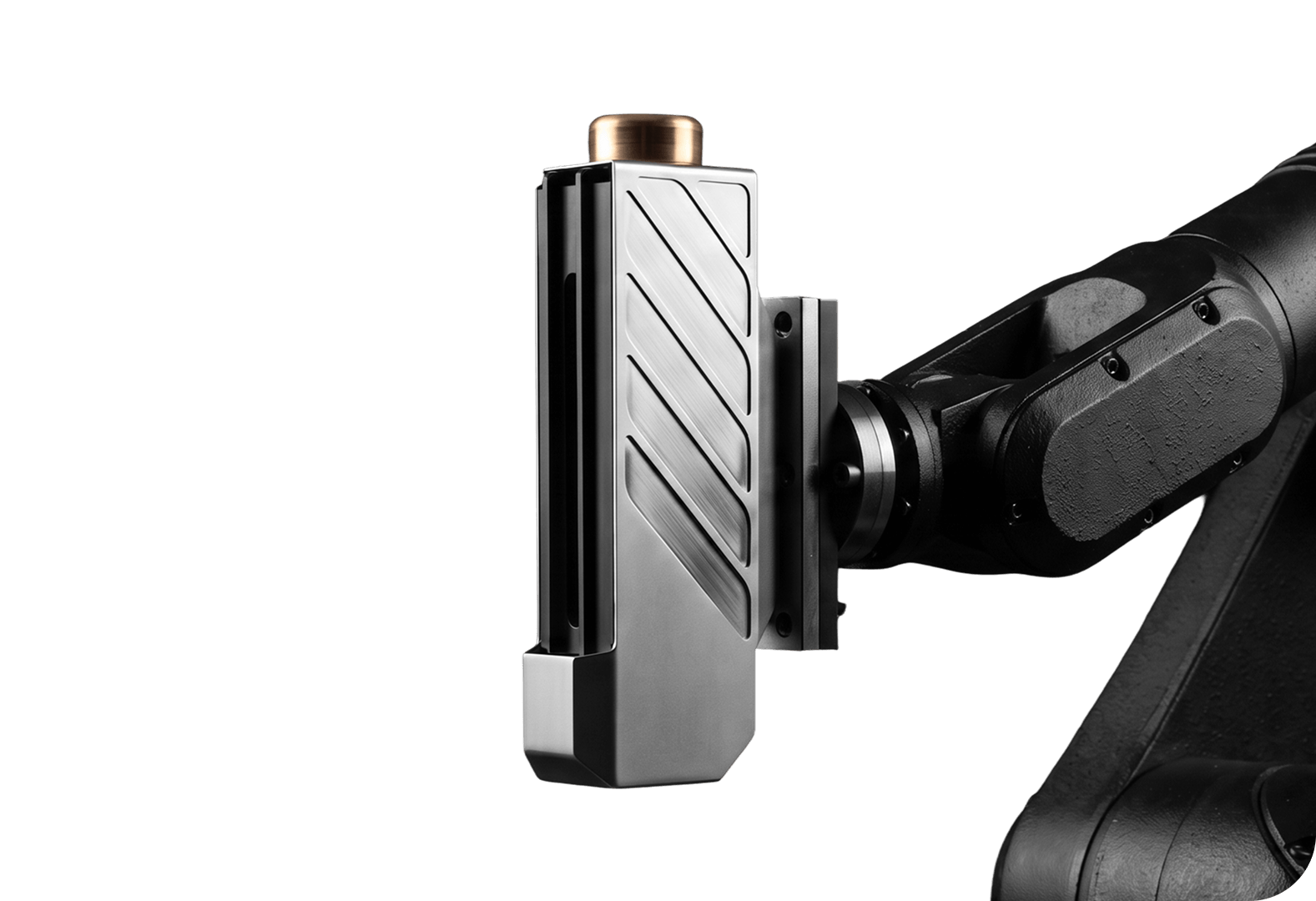

The application device is positioned by an industrial robot above the workpiece and applies individual spots on the surface according to the CAM program.

controls

KEY FEATURES

Cold process advantage

PSP operates at a low temperature, minimizing the risk of thermal influence or material property changes in the treated area.

Energy Control

The maximum energy delivered per individual spot currently is approximately 10 J. This value is defined by CAM system (Computer Aided Manufacturing), enabling fine-tuning of the surface energy imparted by the shockwave.

Tailoring Treatment Depth

The depth of material affected by the process is directly influenced by two factors: the size of the spot and predefined spot energy. By controlling these parameters, you can achieve the desired level of surface strengthening.

keyfeatures

Tailoring Depth and Stress Effects

The number of overlapping "layers" applied influences the depth of the affected material zone and the magnitude of the induced compressive stresses. This allows precise control over the strengthening effect.

Uniformity and Repeatability

PSP deliver exceptional uniformity and repeatability in its spot application.

Maintaining Material Integrity

The process is designed to leave the workpiece surface uncontaminated. This eliminates the need for post-treatment cleaning steps, streamlining the overall workflow.

Precise Spot Treatment

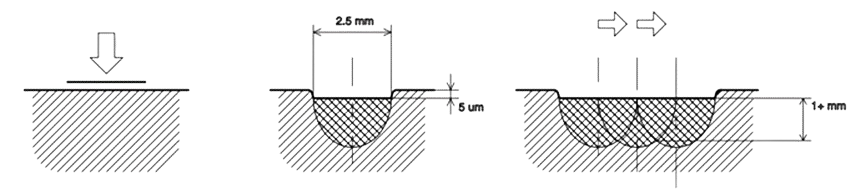

Each spot creates a defined impact area and measures 2.5 x 2.5 mm. A scheduled grid of these spots across the desired treatment area is applied, and the process achieves comprehensive surface coverage.

Compressive Stress Generation

The powerful shockwave effectively compacts the surface layer of the metal, typically reaching a depth of 1 mm or more. This compression induces plastic deformations within the material, creating beneficial compressive stresses that enhance performance.

keyfeatures

Extension products lifetime

Enhance product durability significantly by addressing surface tension through shock peening.

PSP ADDED VALUE

Cost-Effectiveness

We prioritize affordability. Both the PSP application service and the device itself are designed to be highly cost-competitive, offering significant savings compared to traditional solutions.

Enhanced Mobility

Our mobile PSP device facilitates on-site treatment, optimizing operational efficiency and reducing downtime by delivering the treatment directly to the workspace.

Precise Depth Control

The technology offers exceptional control, allowing for material compaction down to millimeter depths. This targeted approach ensures optimal results without unnecessary material modification.

Pioneering Technology

Our PSP solution represents a groundbreaking advancement in the field.

Streamlined Operations

Device mobility and the efficient application process of our PSP technology contribute to a significant reduction in operating costs for manufacturing companies.

Environmental Responsibility

By minimizing the need for transportation and potentially reducing the frequency of component replacements, our technology contributes to lowering the environmental burden of manufacturing processes.

flexibility

flexibility

Wide range of application

The PSP technology offers the advantage of not requiring direct optical access to the treated surface. It can be operated in a dry, real environment without any limitations.

This means that we can effectively harden internal parts of treated components, as well as corners of complex forms and other difficult-to-reach areas.

efficiency

efficiency

Extending life time of your products

By adjusting surface tension, we have can significantly enhance the lifespan of our clients'

products. Our method delivers similar treated surface values as Laser Shock Peening, resulting in a

potential extension of product lifespan by hundreds of per cent.

LoC

low operational costs

Increasing the productivity

PSP can be implemented in several manufacturing to increase the quality of production with relatively low extra cost.

Operational costs are significantly lower than in laser shock peening.

Moreover the pricing of PSP Technology allows implement technology in high-, medium- and low-tech industries

SERVICES

SAMPLE PREPARATION AND ANALYSIS

Material sample preparation and testing according to ASTM E837.

PSP APPLICATION SERVICE

At PSP Application Service, we specialize in providing high-quality PSP applications for your components. Our dedicated team will work with you to assess your requirements and develop improvements to enhance performance and durability. The key part of our process is a crucial pilot test, which is necessary for evaluating the economic benefits of the application for our clients.

PSP RENTAL SERVICE

We have developed the equipment rental service for clients who are considering a purchase, are dealing with a temporary project, or do not want to purchase a service, e.g. for confidentiality reasons.

SALE OF PSP EQUIPMENT

We are offering PSP equipment for sale. Our package includes expert technical support and training for employees to familiarize them with PSP technology and correct procedures. If you are interested, please reach out to us. We would be happy to discuss your specific needs with you.

If you are interested, contact us, please. We will be happy to discuss your specific needs with you.

Contact

Features

stats

2.5 x 2.5mm

spot size

drill

10 J

energy aprox

ruler

1+ mm

depth affected

APPLICATIONS

symbol

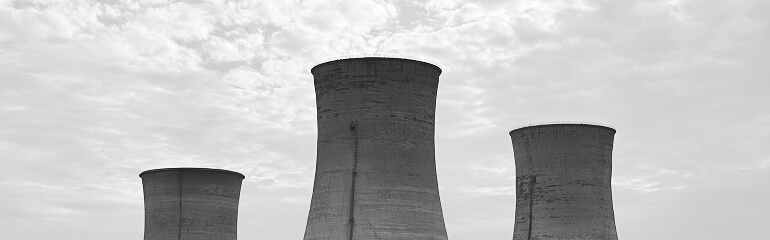

TURBINES & PUMPS

symbol

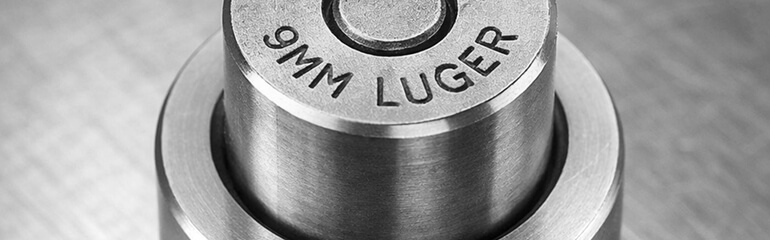

CASTING MOLDS

symbol

WELDS

symbol

MEDICAL DEVICES
